ELECTRICAL DIVISION

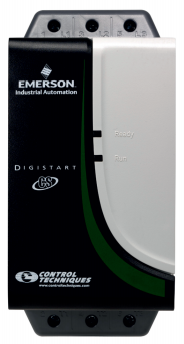

Digistart CS
- The smallest and easiest to use Digistart CS series sets up with simple potentiometer adjustments. It has one of the smallest footprints available and includes a built-in bypass
contactor, which allows smaller, non-ventilated enclosures, making it ideal for MCC applications. - Application – Conveyors Fans & Pumps Etc.
- Up to 60 A, 5 hp to 150 hp
- 200-575 VAC models
- Motor Current Protection
- Built-in Bypass Contactor
- Modbus, Profibus and DeviceNet Options
- Remote Operator Option
- Constant Current Start
- Current Ramp Start
- Equi-Vec™ Balanced Vector Control Technology

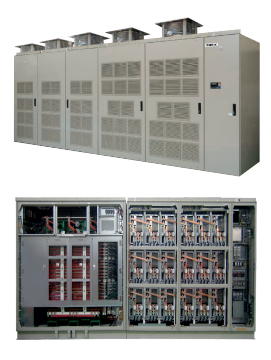

TMdrive-MVG2
TMEIC (Toshiba Mitsubishi Electric Industrial System Corp.), Japan
- Type: TMdrive-MVG2
- The TMdrive-MVG2 is a medium voltage, AC fed drive designed for high-efficiency and power-friendly operation in a broad range of industrial applications.
- High reliability, low harmonic distortion, and high power factor operation are designed into the drive
- 3.3 – 11 kV, up to 19500kVA
- Multi-pulse converter rectifier and phase shifted transformer:
- 3.3 kV Class: 18 pulse
- 6.6 kV Class: 30/36 pulse
- 10 kV Class: 48 pulse
- 11 kV Class: 54 pulse
- Applications – The TMdrive-MVG2 is designed for a wide range of industrial applications, including: Centrifugal pumps, fans, and compressors, screw compressors, blowers, refiners, mixers, extruders, conveyors, press machines, slurry pipelines, and mills.

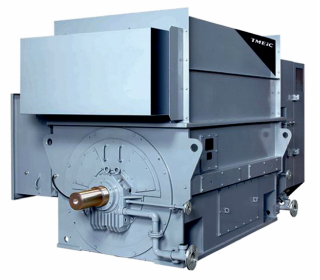

TM-AC, 21-L Series, 21-G Series, 21-H Series, 21-VLL
TMEIC (Toshiba Mitsubishi Electric Industrial System Corp.), Japan
- Type: TM-AC, 21-L Series, 21-G Series, 21-H Series, 21-VLL
- Voltage: 2.3 to 13.8 kV,
- Power: Upto 100,000 KW
- Poles: 2 to 30 Poles
- Standards: IEC, NEMA, BS, AS, ATEX, NEC, GOST, CSA, EN
- Classification Area: Safe Area, Ex-Proof Exn, Exe, Exd, Exp
- Enclosure: Totally Enclosed Air Coolled, Water Cooled/IP55.
- Applications – For all type of applications, including: Centrifugal pumps, fans, and compressors, screw compressors, blowers, refiners, mixers, extruders, conveyors, press machines, slurry pipelines, mills, hot gas expanders, etc

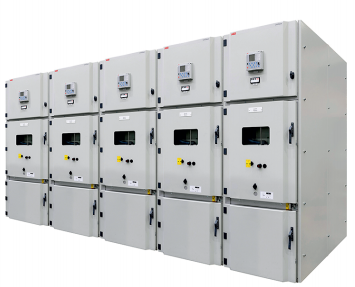

MV & High Voltage Switchgear – GIS/AIS
TMEIC (Toshiba Mitsubishi Electric Industrial System Corp.), Japan
- Type: Gas Insulated Swicthegar (SF6) & Air Insulated Switchgear
- Voltage: 6.6 to 220 kV
- Rated Current: Upto 6300A
- Rated Short time withstand current: 40/50kA for 3 sec.
- Standards: JEC-2300, IEC 60056(1987)
- Certifications: KEMA and CESI certification
- Applications Electrical Distribution network, upstream power distribution.
LAPP Cables
- In the field of cables, control cables, drag chain cables, cables for servomotors, temperature-resistant cables as well as data, LSN and bus cables are offered. There are also automation products for Profibus and Interbus applications. As a system solutions, the company offers store customer individual system solutions from development and production to logistics and services.
- The most prominent brands of the company are OLFLEX (flexible, oil-resistant connection and control cables), HITRONIC (fiber optic cables for data transmission), UNITRONIC (data cables for various applications), ETHERLINE (components and system solutions for active network technology)
Building Wires & Flexible Cords
Single core cables are used in buildings for fixed wiring & lighting, electric switches, distribution boards, internal wiring in apparatus, for earthing purpose, etc. Voltage range includes 450/750 V. These cables are manufactured to BS & IEC standards.
Flexible cables are used in auxiliary circuits & equipments, CCTV power supply, etc. Voltage range includes 300/500V. These cables are manufactured to BS & IEC standards
Enclosed switches – Plastic enclosures
Construction: Enclosure in PBT (Thermoplastic polyester) plastic, high impact strength and chemical resistant
Degree of protection: IP65, IEC 60529
Rated Voltage: 0.6/1.0 (1.2) kV
Product Range: 16 to 100 Amperes
Application – The plastic enclosures are most suitable for locations with high chemical and moisture requirements. In addition they are light and easy to install and handle.
Conductors – Cu Tape
Purpose: Structural lightning protection or below-ground earthing installation.
Application: Commercial Buildings, Oil & Gas / Petrochemical, Utilities, Rail & Infrastructure, High tech & Industrial, Sports & Recreation, Government & Public Sector, Residential, Cultural & Heritage etc.
Size Range: Flat tape conductor-25 x3mm, 25 x 6mm, 50 x3mm, 50x6mm and also available in variety of conductor sizes
Type: Bare Cu tape, Pvc covered Cu tape, Tinned Cu tape
Standards: BS EN 13601
Material: Copper, Aluminum & Pvc Covered Cu tape, Tinned Copper
Technical Specification:
- For most installations, copper is specified to due to its high conductivity and anti-corrosive properties.
- Conductor ratings are based upon the recommendations of BS7430 with an initial conductor temperature of 30 degrees C and a maximum temp of 250 Deg C.
Earth Electrodes & Accessories
Purpose: Earth rods and plates or any combination thereof can be achieve an effective earth depending on site conditions
Application: Commercial Buildings, Oil & Gas / Petrochemical, Utilities, Rail & Infrastructure, High tech & Industrial, Sports & Recreation, Government & Public Sector, Residential, Cultural & Heritage etc.
Size Range: 15mm – 20mm dia & 1200mm – 3000mm length
Standards: BS EN50164-2, Bs7430
Types of Rods: Copper bonded, Solid copper & Stainless steel.
Material: Copper bonded, copper & Stainless steel.
Technical Specification:
- Highly resistance to corrosion
- Cu bonded rods are made of molecularly bonding 99.9% pure electrolytic copper onto a low carbon steel core.
- Copper thickness min 250 microns
Cable Tray
Purpose: In the electrical wiring of buildings, a cable tray system is used to support insulated electrical cables used for power distribution, control, and communication.
Application: Commercial buildings, Oil & Gas / petrochemical, Utilities, Rail & infrastructure, High tech & industrial, Sports & recreation, Government & public sector, Residential, Cultural & heritage, Marine etc.
Size Range:
Height: 15mm – 100mm
Width: 50mm – 900mm
Thickness: 1mm – 3mm
Finish: Pre-Galvanized, HDG, Aluminium, Epoxy coated & Stainless Steel
Standards: BS EN 61537, BS EN ISO 1461, PG- BS EN 10142
Material: Hot dip galvanized / Pre galvanized zinc coated steel / Stainless steel / Aluminium
Cable Tray & Ladder Accessories
Purpose: Use for Installation of Cable Tray & Ladders
Application: Oil & Gas / Petrochemical, Utilities, Rail & Infrastructure, High Tech & Industrial, Sports & Recreation, Government & Public Sector, Cultural & Heritage etc.
Size Range:
Height: 75mm – 150mm,
Width: 100mm- 1000mm
Thickness: 1.mm- 3mm
Finish: HDG, Aluminium, Epoxy coated & Stainless Steel
Accessories: Available in all sizes (Bend, Equal Tee, Coupler, Covers Etc)
Material: Hot dip galvanized / Pre galvanized zinc coated steel / Stainless steel / Aluminium
GI Conduit & Accessories
Purpose: An electrical Gi conduit is a tube used to protect and route electrical wiring in a building or structure
Application: Oil & Gas / Petrochemical, Utilities, Rail & Infrastructure, High Tech & Industrial, Sports & Recreation, Government & Public Sector, Cultural & Heritage etc
Size Range: 20mm, 25mm,32mm, 38mm, 50mm
Types: Gi Conduit. EMC conduit, IMC conduit
Finish: Class 4 -HDG, Class 3 Pre-Galvanized
Accessories: Available in all sizes (Bend, Equal Tee, Coupler, Junction boxes Etc)
Standards: BS 4568 / BS EN 50086-2-1
Material: Gi Conduit – Hot dip galvanized / Pre galvanized Accessories Malleable Iron
Industrial Plugs and Sockets
MENNEKES, a leading German manufacturer, has a product range of 15,000 articles which are exported in more than 90 countries.
The product range includes industrial plugs and sockets of various types and designs: plugs, connectors, receptacles, switched interlocked sockets and plugs and sockets for containers according to IEC 309, receptacle combinations etc. for a huge range of applications.
Polycarbonate Junction Boxes – Introduction
The innovative product range of modern installation and distribution board systems has made Hensel into one of the market leaders in the tapping, fusing and distribution of electrical energy in the low voltage sector.
The high-quality Hensel products are processed in particular by the electrical trade, industry and in electrical installations. Wherever environmental influences, dust and humidity require a particularly sophisticated installation technology, Hensel with its innovative solutions enables the reliable and safe distribution of energy up to degree of protection IP67.
Personal and Collective Protective Equipment
- Collective protective equipment for preventing electrical hazards contains all the products that close off the hazard by distance, obstacles and Insulation. CPE must comply with the standards in force
- Sizes: Available in different sizes
- Voltage ratings: 500V to 36000 V
Standards:
- Insulated Rubber Gloves: IEC 60903/EN 60903
- Insulating Safety shoes : EN 20345/ EN 50321
- Safety Helmet: EN 12492/EN 50365/ANSI Z89.1/ EN 166/En 170/EN 397
- Safety Glasses: EN 166/EN 170
Junction Boxes
Suitable for installation in any areas of a plant where there is a risk of explosion and/or fire, or areas where combustible dust is present
Classification: Zone 1, 2, 21, 22.
Material Of Construction: Body and lid in low copper content aluminium alloy. Stainless steel cover bolts. Internal/external earth screws. RAL 7035 epoxy coating. Galvanized steel mounting brackets. Silicon gasket Copper Free Aluminium
Installation: EN 60079.14 zone 1 – zone 2 (Gas) zone 21 – zone 22 (Dust)
Certification: ATEX CESI 00 ATEX 036U IEC Ex CES 14.0017U
Standards: CENELEC EN 60079-0: 2012, EN 60079-1: 2014, EN 60079-31: 2014, EN 60529: 1991 and EUROPEAN DIRECTIVE 2014/34/UE
Application: Oil refinery, Petrochemical, On Shore & Offshore Plants
The UPS systems of the industrial ACU series make it possible to supply power to the critical AC loads safely and in full compliance with the requirements of the Client’s installation. The high level of customization of an electrical, mechanical and topological nature allows total adaptation to client needs. The construction of a “made-to-measure” system for the Client not only increases reliability and performance, but also optimizes the entire infrastructure (rectifier,batteries and inverters ) based on real needs.
